Ohlins RXC34 m.1 Suspension Fork - 29", 100mm, 15mm x 110mm, 44mm Offset, Remote Actuated OTX14 Damper, Carbon Unicrown, Air Spring, Black
MPN: FGMTB 3410 2390 · UPC: 840153633553
Unleash the next level of racing performance with the latest innovation in Ohlins front suspension – the RXC34 m.1 carbon unicrown fork. Equipped with their race proven floating axle design, the RXC34 m.1 features a chassis with a stiff, yet lightweight aluminum with carbon unicrown construction for precise steering and predictable performance. This is their lightest racing version of the carbon unicrown fork, saving an additional 20 g of weight. Like the aluminum version, the carbon unicrown RXC34 m.1 features an all-new damper and updated air spring, further enhancing speed and control on technical cross-country tracks. As part of the Öhlins XC suspension system, the RXC34 m.1 features a rider-friendly system for adjusting air spring progressiveness and stroke. And with their race-proven setting bank, you’ll be able to fine-tune the fork to your unique riding style and bike linkage.
- ✓ This RXC34 m.1 remote version (remote sold separately) offers 3 ride modes and 16 clicks of rebound adjustment
- ✓ Remote connection is designed for 7.5 mm of wire pull per position which means you can use the shock with remote levers from other top brands

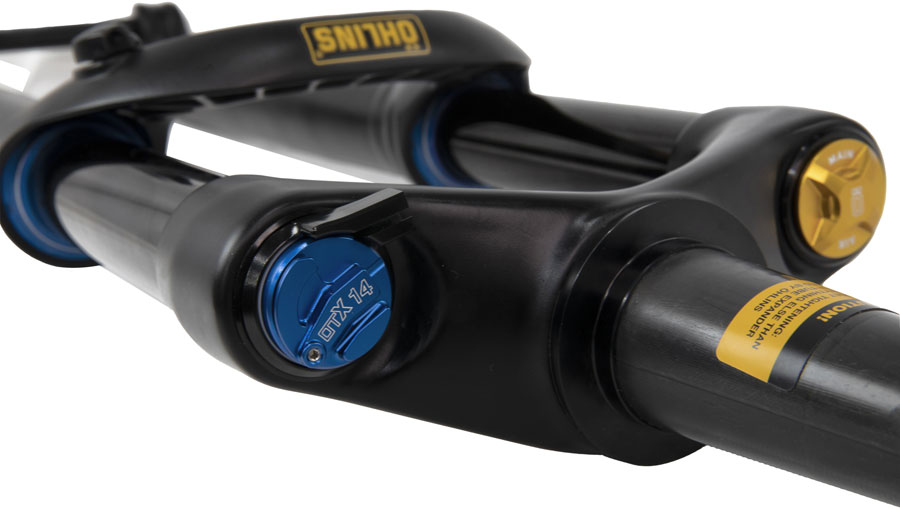

- ✓ Uses the new XC-optimized OTX14 damper that's been extensively designed to provide a slim, lightweight damper packed with technology
- ✓ Highly adjustable with race-proven setting bank to match riding style and bike
- ✓ Two-chamber air spring feature a large negative air chamber balanced with the damper’s characteristics in the three different ride modes – open, pedal, and lockout
- ✓ Creates the initial movement required for superior traction while retaining best-in-class, predictable support when pushing hard

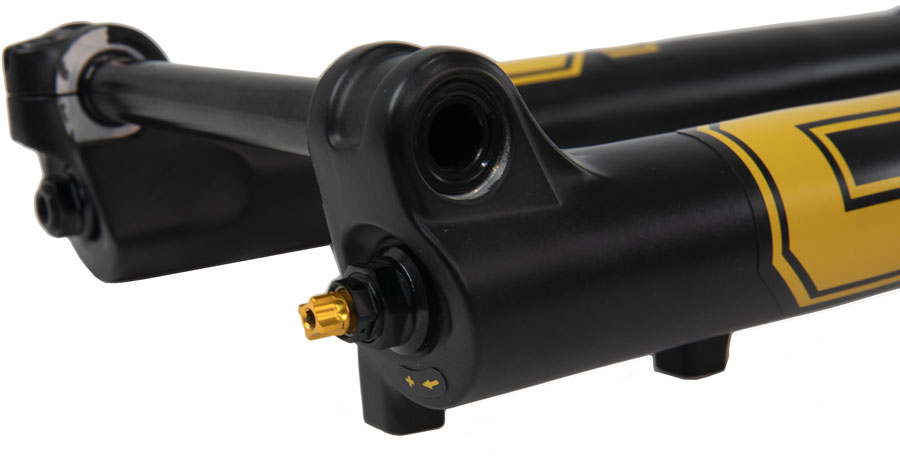

- ✓ 15mm x 110mm boost floating thru-axle axle design to minimize friction
| Steerer Type | Tapered |
| Lockout Switch | Remote |
| Brake Type | Post Mount 180 |
| Negative Spring | Air |
| Travel (mm) | 100 |
| Offset | 44 |
| Axle to Crown Length | 511 |
| Front Axle | 15mm Thru x 110mm |
| Maximum Tire Width | 66 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Color | Black |
| Crown Race | 40 |
| Weight | 1476 |
| Wheel Size | 29" |
| External Adjustments | Rebound Damping |
| Defined Color | Black |
| Positive Spring | Air |
| Stanchion Diameter | 34 |
