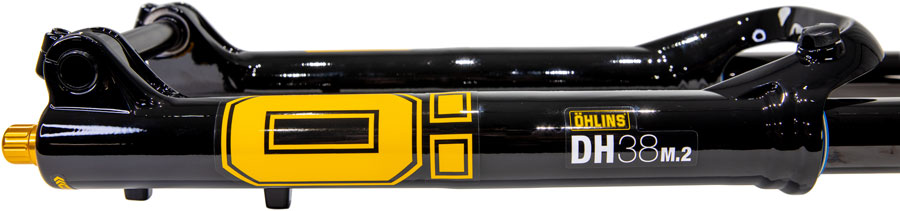

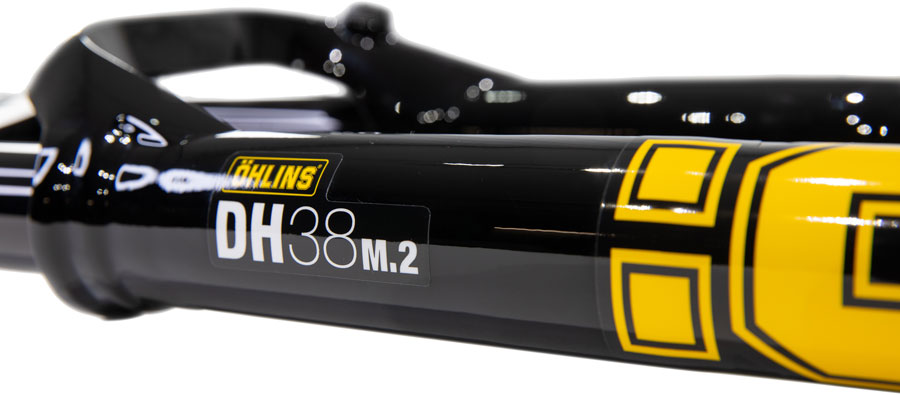

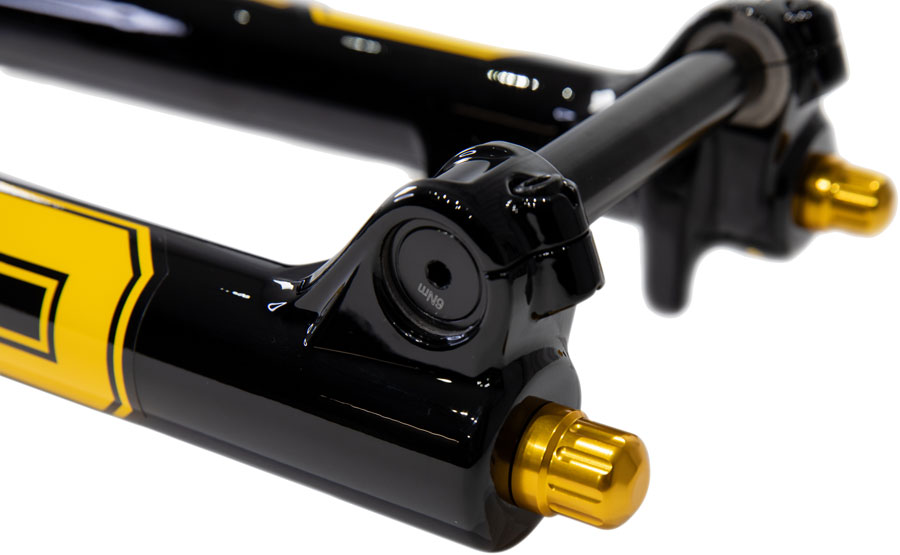

Ohlins DH38 m.2 Coil Suspension Fork - 29"/27.5", 200mm, 20mmx110mm DH Boost, TTX18 Damper, Coil Sprung, Gloss Black
MPN: FDMTB 3820 2520 · UPC: 840153644351
New DH38 m.2 coil sprung suspension fork with features reworked internals and updated settings, built around the race-proven TTX18 cartridge. This powerful fork is the ultimate downhill weapon, delivering hard-hitting performance through its dual-crown design. The new DH38 m.2 fork is the most advanced downhill fork Ohlins has ever created, offering improvements in comfort, sensitivity, and bottom-out control. Bottom-out progressiveness has been increased with the addition of a spring booster, and the system is further optimized for use with volume spacers, giving riders greater flexibility to fine-tune their ride feel. With these upgrades, the new DH38 m.2 is the ultimate fork for gravity riders charging down the steepest lines and attacking the most demanding courses—engineered to push harder, land bigger, and inspire full confidence.
- ✓ Four separately sold DH Crowns, you can choose from 46-, 50-, 54-, or 58-mm offset options to match your setup and preferred riding style
- ✓ Independent cartridge spring and damper systems
- ✓ Coil-sprung for maximum suppleness and reliability
- ✓ Cartridge-based spring system allows for quick swaps between Coil and Air setups when needed (air spring cartridge sold separatelty)
- ✓ Race-proven setting bank that features 3 HSC Clicks, 16 LSC Clicks and 16 LSR Clicks
- ✓ New surface treatment on the 38mm stanchions improves small-bump sensitivity and overall ride smoothness and also reduces wear for long-term performance
- ✓ 20 x 110 Boost floating thru-axle set up for minimum friction
- ✓ Compatible with 29" and 27.5" wheels
- ✓ eMTB compatible
| Steerer Type | Straight |
| Lockout Switch | Crown |
| Brake Type | Post Mount 200 |
| Negative Spring | Coil |
| Travel (mm) | 200 |
| Front Axle | 20mm Thru x 110mm Boost |
| Maximum Tire Width | 71 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Color | Gloss Black |
| Crown Race | 30 |
| Wheel Size | 27.5" |
| External Adjustments | Rebound Damping |
| Defined Color | Black |
| Positive Spring | Coil |
| Stanchion Diameter | 38 |
