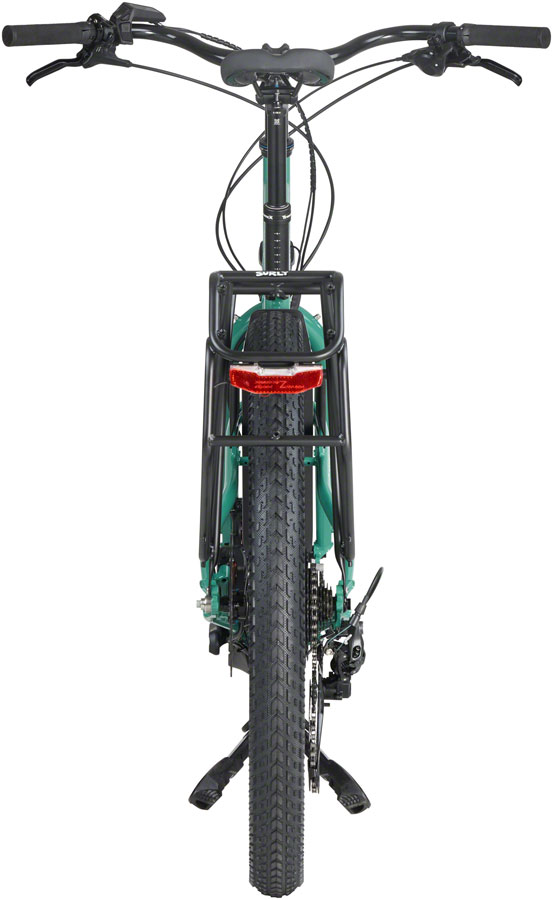

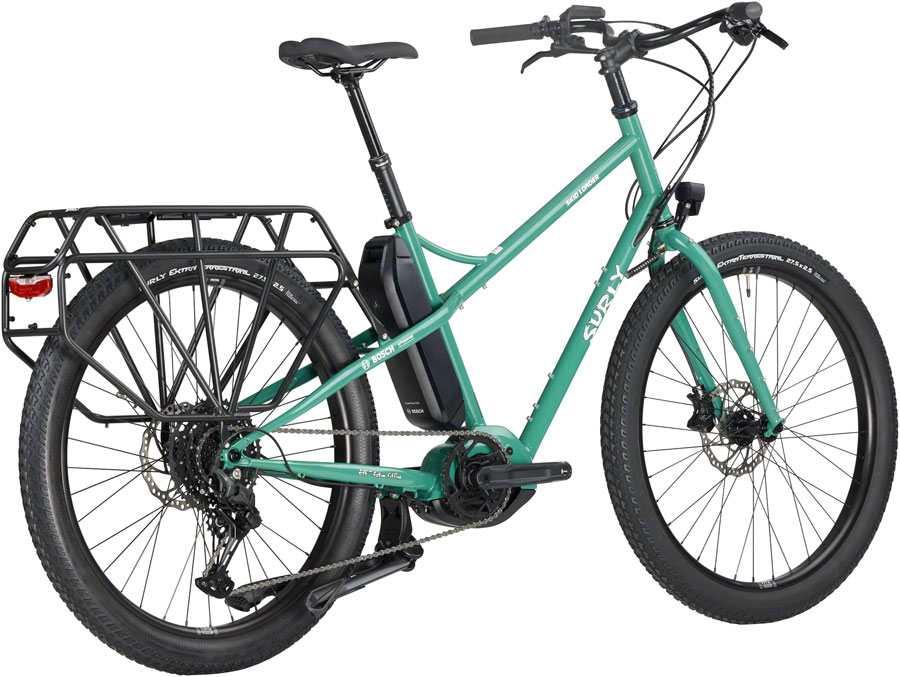

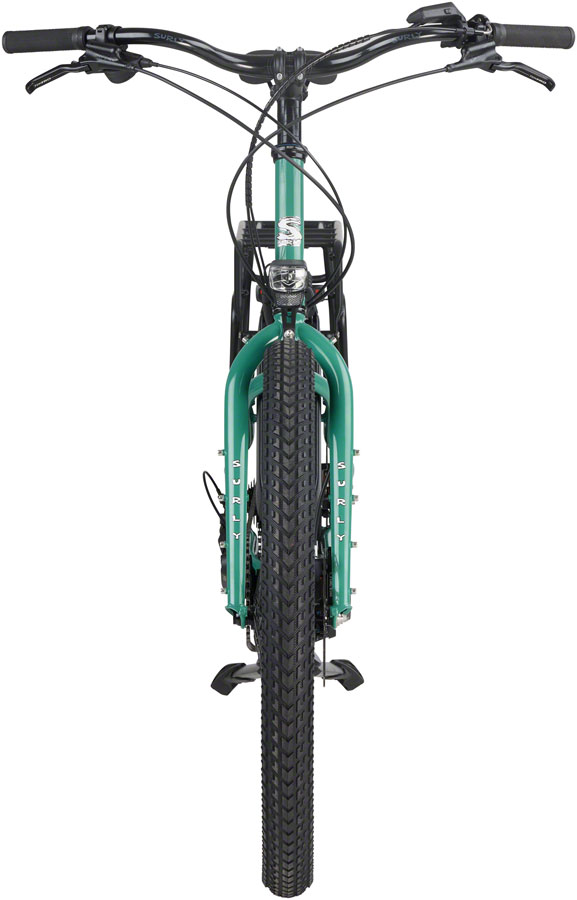

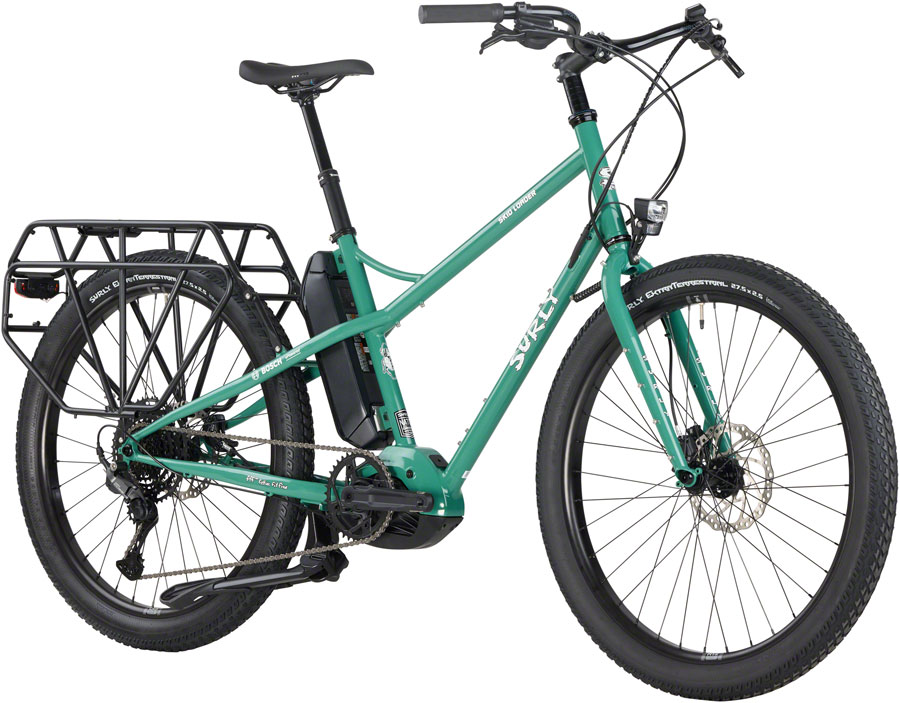

Surly Skid Loader Cargo Ebike - 27.5'', Steel, Illegal Smile Green, Medium
MPN: 04-002237 · UPC: 708752487536
WARNING Handling this product will expose you to chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. For further information go to www.P65Warnings.ca.gov
A highly useful compact electric cargo bike, Surly Skid Loader is built for heavy loads and goes where traditional long-tails can’t quite fit. Engineered to expand utility and shrink footprints, it’s ideal for cutting down on car trips and navigating tight spaces — think bus racks, packed trains, or studios without storage space. Skid Loader comes in three broad frame sizes, and it’s equipped with a robust rear rack, the option to run dual batteries for greater range, and clearance for large-volume tires. For hauling more gear over longer distances and everyday rides on whatever surface, Skid Loader rolls along, happy to oblige.
- ✓ 100% Surly Chromoly Steel frame and fork, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
- ✓ Bosch Performance Line Cargo (smart system) with Purion 200 Remote, with four levels of ride assist
- ✓ Three frame sizes (S,M,L) with dropper post and standover considerations
- ✓ Internal cable routing for dropper post, brake, derailleur, and lights
- ✓ Dedicated rear rack features M6 hardware and 100-lb. capacity (The maximum cargo capacity of the deck alone is 59lb (27kg))
- ✓ Stable dual-leg kickstand and kickstand plate, plus mounts for fenders and a front rack
- ✓ Fully tested and rated electric bike component set
- ✓ Tire clearance: 27.5 x 2.8” without fenders
- ✓ Front wheel stabilizer
- ✓ Integrated headlights and taillights for extra visibility
- ✓ Meets UL 2849, and UL 2271 certification
| Rear Axle | 12mm Thru x 148mm |
| Throttle | No |
| TT (Effective) | 610 |
| Brake Type | Disc |
| Removable Battery | Yes |
| Battery Power (Wh) | 545 |
| Battery Power (V) | 36 |
| Battery Power (Ah) | 14.4 |
| Fork Type | Rigid |
| Fork Material | Steel |
| Lights Included | Yes |
| Frame Material | Steel |
| Frame Type | Rigid |
| Max Motor Assist (Percent) | 400 |
| Front Axle | 15mm Thru x 110mm |
| Drive Type | Mid-Drive |
| Charger Included | Yes |
| Color | Illegal Smile Green |
| Battery | Li-Ion |
| Assist Levels | 4 |
| Range Estimate (Mi) | 15–50 |
| Motor Torque (Nm) | 85 |
| Charge Time (h) | 1.8–4.9 |
| Gross Payload (Lbs) | 400 |
| Mfg Size | Medium |
| Assist Speed (Mph) | 20 |
| Walk Assist | Yes |
| Platform | Skid Loader |
| Wheel Size | 27.5" |
| Defined Color | Green |
Bike Size Guide
| Size | Rider Height | Inseam |
|---|---|---|
| XS / 47-49cm | 5'0" – 5'3" | 27" – 29" |
| S / 51-52cm | 5'3" – 5'6" | 29" – 31" |
| M / 54-55cm | 5'6" – 5'9" | 31" – 33" |
| L / 56-58cm | 5'9" – 6'0" | 33" – 35" |
| XL / 59-61cm | 6'0" – 6'3" | 35" – 37" |
