Surly
Surly Ogre Frameset - 29", Steel, Fermented Plum, X-Large
MPN: 04-002065 · UPC: 708752431430
$899.00
In Stock — Ships in 4-9 Days
📦 Ships from Warehouse — 4-9 Business Days
💳
Select Option: Surly Ogre Frameset - 29", Steel, Fermented Plum, X-Large
🏪 Free pickup: 26 Essex St (Rear), Andover MA · 978-270-4895
🔒 Secure Checkout
💳 Visa · MC · Amex · Apple Pay
📦 Free Ship $99+
🚚 Local Delivery $20
⚠️
WARNING — California Proposition 65
WARNING Handling this product will expose you to chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
The Ogre can get you to your job during the week, then way out of town on the weekend. It’s not sluggish on pavement or gravel and can also hold its own on singletrack. Ogre brings several sensible features to the 29er platform, including horizontal slotted dropouts with Gnot-Boost spacing, a tweaked non-suspension corrected geometry, and a beefy tire clearance.
- ✓ 100% Surly Chromoly steel, double-butted main triangle

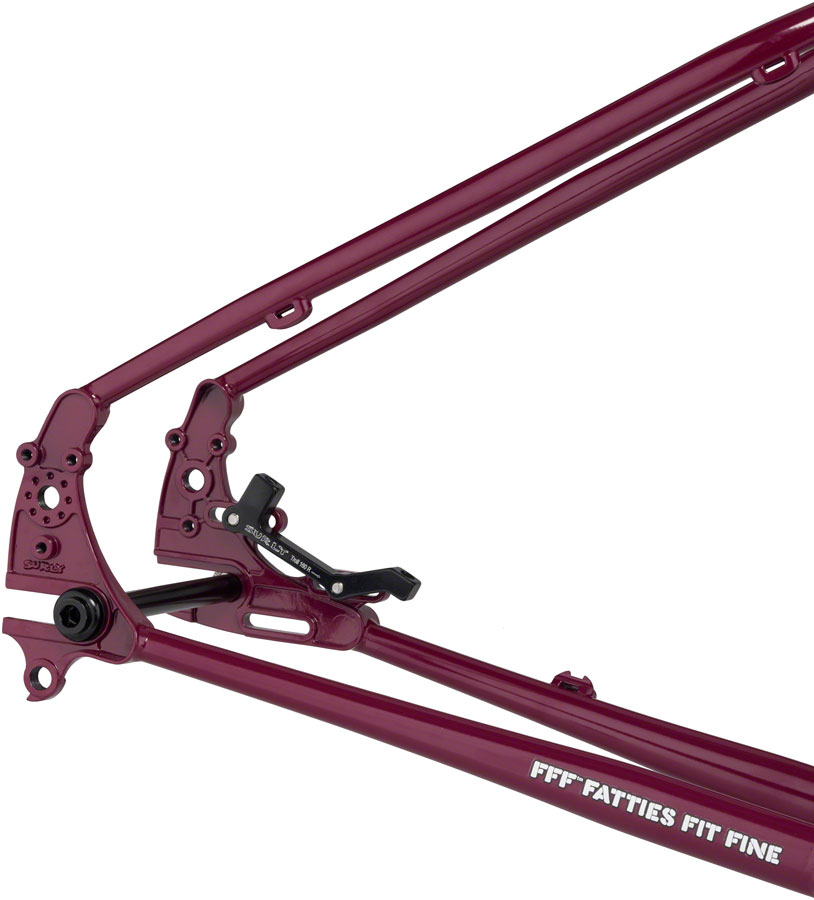

- ✓ TIG-welded, Horizontal slotted with derailleur hanger, Gnot-Boost spacing allows the use of 135mm QR hub, 142 x 12mm thru-axle or 148 x 12mm Boost hubs. Features Rohloff torque arm slot and threaded eyelets for fenders, racks and Surly trailer mounts
- ✓ Full-length Surly Trip Guide housing line guides for derailleurs and brakes; two sets of bottle cage mounts; upper seatstay threaded barrels, mid- and low-blade fully threaded through-blade fork eyelets; threaded holes for racks, fenders and trailer mounting nuts; Rohloff OEM2 axle plate mounting slot
- ✓ Disc brakes only. Disc mounts are 51mm IS. Note: rear disc brake is limited to 160mm maximum rotor diameter and requires the use of Surly caliper adaptor (included with frames and bikes)
- ✓ Frame is E.D. coated for increased life expectancy
- ✓ Tire clearance for 29 x 2.5" or 27.5 x 3"
| Rear Axle | QR x 145mm |
| TT (Effective) | 640 |
| Brake Type | Disc |
| Fork Type | Rigid |
| Frame Material | Steel |
| Frame Type | Rigid |
| Front Axle | QR x 100mm |
| Color | Fermented Plum |
| Mfg Size | X-Large |
| Platform | Ogre |
| Wheel Size | 29" |
| Defined Color | Purple |
Bike Size Guide
| Size | Rider Height | Inseam |
|---|---|---|
| XS / 47-49cm | 5'0" – 5'3" | 27" – 29" |
| S / 51-52cm | 5'3" – 5'6" | 29" – 31" |
| M / 54-55cm | 5'6" – 5'9" | 31" – 33" |
| L / 56-58cm | 5'9" – 6'0" | 33" – 35" |
| XL / 59-61cm | 6'0" – 6'3" | 35" – 37" |
💡 This is a general guide. SOTO Cycles offers FREE basic bike fitting with every new bike purchased and picked up locally — we'll make sure your bike fits perfectly.
