Surly
Surly Karate Monkey Frameset - 27.5", Steel, Snow Mold White, X-Small
MPN: 04-002074 · UPC: 708752428331
$999.00
Low Stock — 4 left (Warehouse)
📦 Ships from Warehouse — 4-9 Business Days
💳
Select Option: Surly Karate Monkey Frameset - 27.5", Steel, Snow Mold White, X-Small
🏪 Free pickup: 26 Essex St (Rear), Andover MA · 978-270-4895
🔒 Secure Checkout
💳 Visa · MC · Amex · Apple Pay
📦 Free Ship $99+
🚚 Local Delivery $20
⚠️
WARNING — California Proposition 65
WARNING Handling this product will expose you to chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

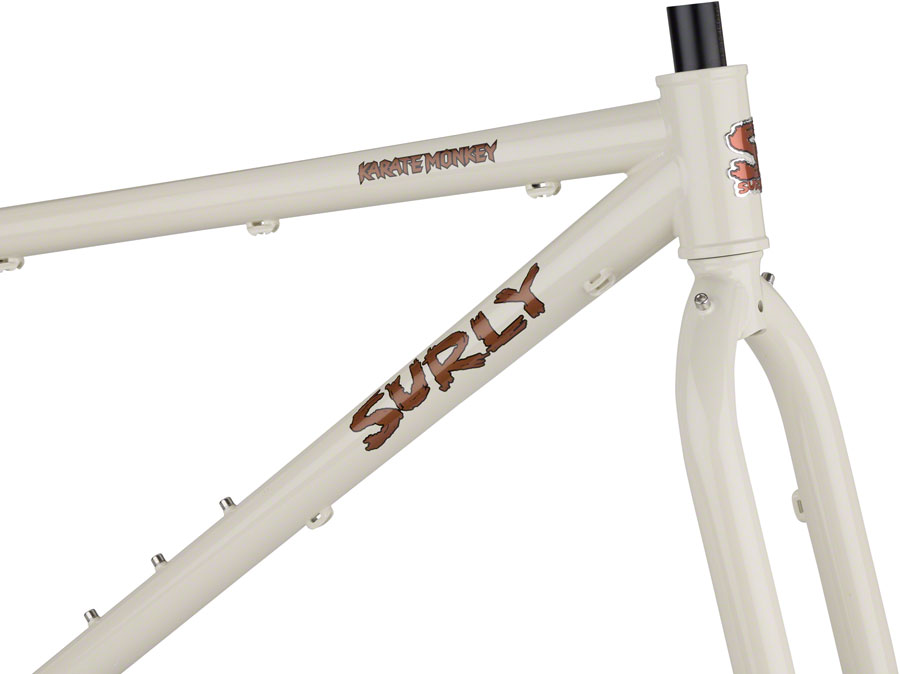

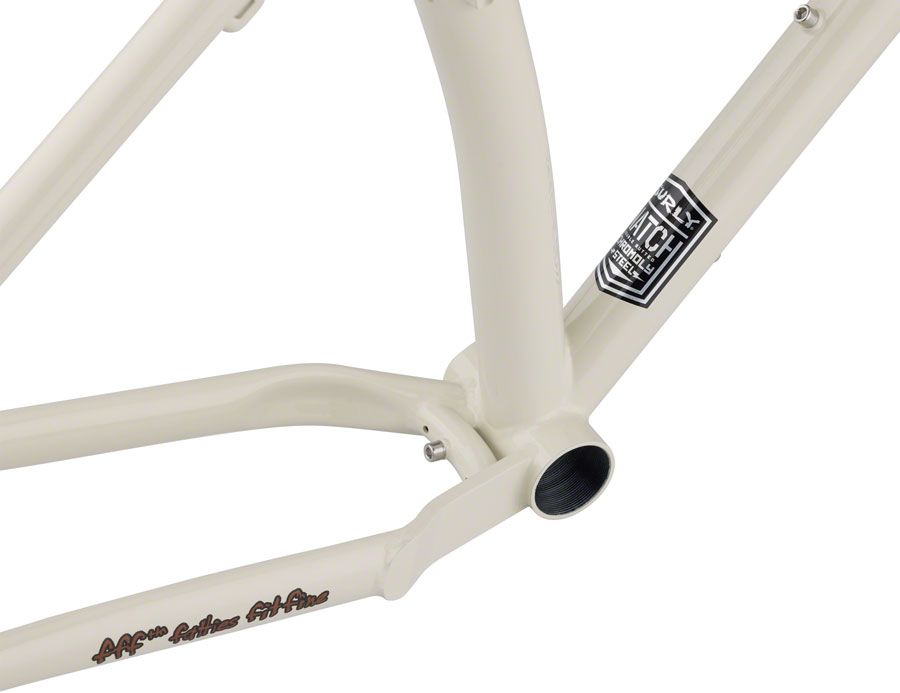

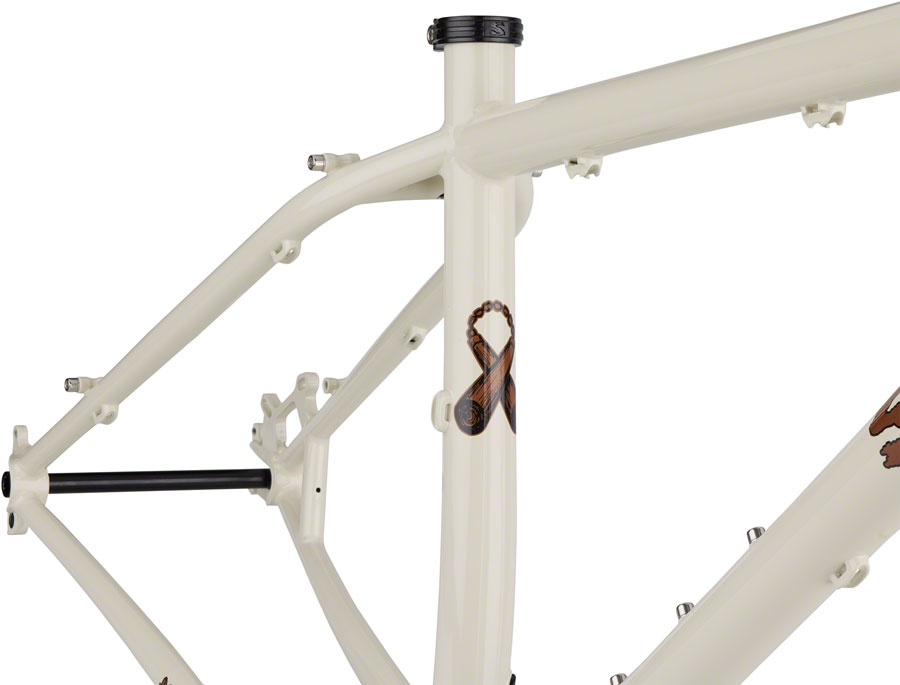

The Karate Monkey features updated, progressive trail geometry, our custom trumpet tubeset and Surly’s Gnot-Boost rear dropout system. Available in a variety of colors, with multiple drivetrain and wheel size configurations.
- ✓ 100% Surly Chromoly steel frame and fork; double-butted main triangle and 44mm headtube
- ✓ The tubeset uses the same trumpet tubes found on Instigator 2.0 frame

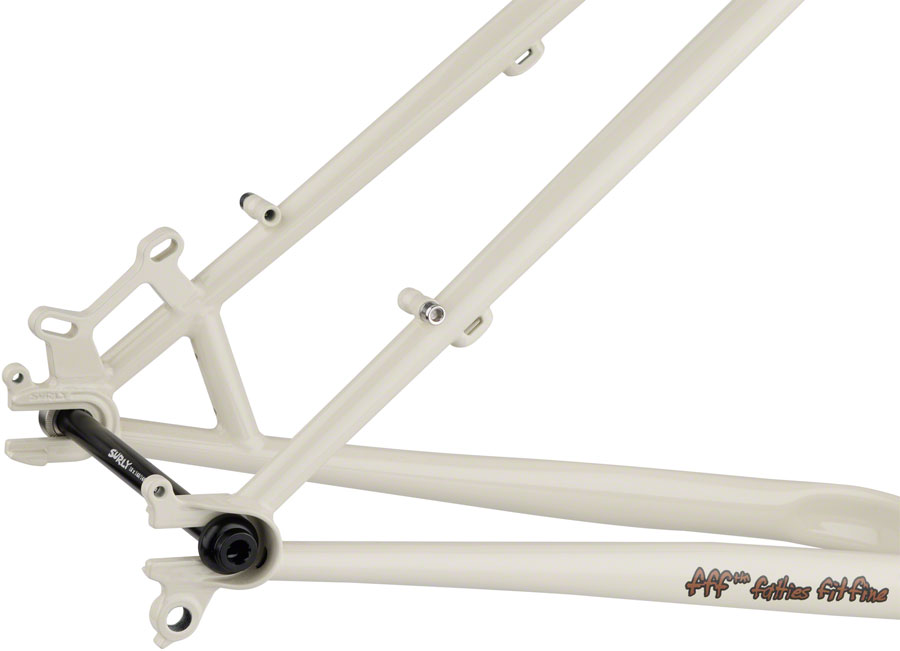

- ✓ Adjustable rear dropouts with 145mm Gnot-Boost spacing. Works with 142, 148 12mm thru, as well as 135mm w/ 10/12 washer
- ✓ Internal dropper seatpost routing with 30.9mm seat tube ID
- ✓ Clearance for 29 x 2.55 or 27.5 x 3 tires
| Rear Axle | 12mm Thru x 145mm |
| Brake Type | Disc |
| TT (Effective) | 560 |
| Fork Type | Rigid |
| Fork Material | Steel |
| Frame Material | Steel |
| Frame Type | Rigid |
| Front Axle | 15mm Thru x 110mm |
| Color | Snow Mold White |
| Mfg Size | X-Small |
| Platform | Karate Monkey |
| Wheel Size | 29" |
| Defined Color | White |
Bike Size Guide
| Size | Rider Height | Inseam |
|---|---|---|
| XS / 47-49cm | 5'0" – 5'3" | 27" – 29" |
| S / 51-52cm | 5'3" – 5'6" | 29" – 31" |
| M / 54-55cm | 5'6" – 5'9" | 31" – 33" |
| L / 56-58cm | 5'9" – 6'0" | 33" – 35" |
| XL / 59-61cm | 6'0" – 6'3" | 35" – 37" |
💡 This is a general guide. SOTO Cycles offers FREE basic bike fitting with every new bike purchased and picked up locally — we'll make sure your bike fits perfectly.
