Ritchey WCS Switch Upper Headset - Switch System Compatibility Only, ZS56/28.6 Upper, 28.6 Threadless, Black
📷 2 photos
Ritchey

Ritchey WCS Switch Upper Headset - Switch System Compatibility Only, ZS56/28.6 Upper, 28.6 Threadless, Black

MPN: 33030817025 · UPC: 796941333207

$35.95
In Stock — Ships in 4-9 Days
📦 Ships from Warehouse — 4-9 Business Days
Select Option: Ritchey WCS Switch Upper Headset - Switch System Compatibility Only, ZS56/28.6 Upper, 28.6 Threadless, Black
1
🏪 Free pickup: 26 Essex St (Rear), Andover MA · 978-270-4895
🔒 Secure Checkout
💳 Visa · MC · Amex · Apple Pay
📦 Free Ship $99+
🚚 Local Delivery $20

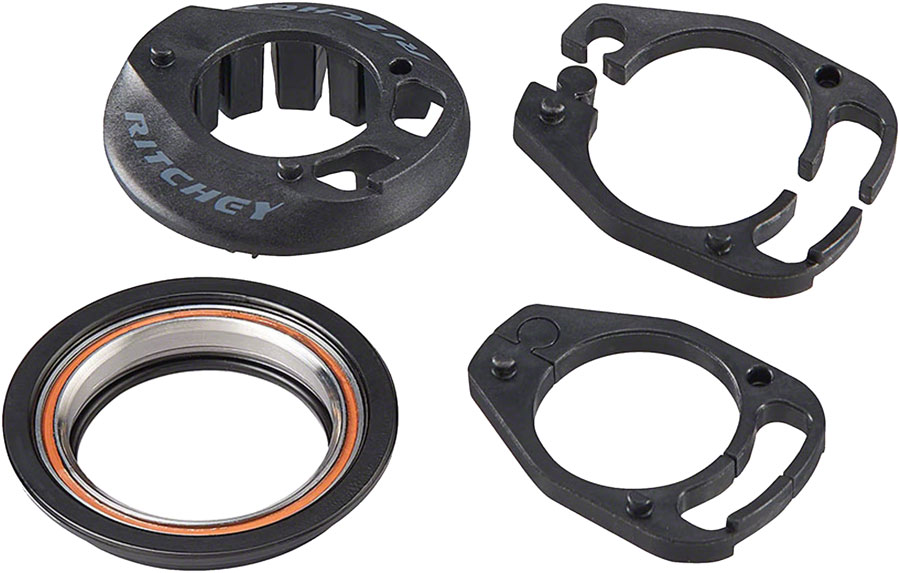

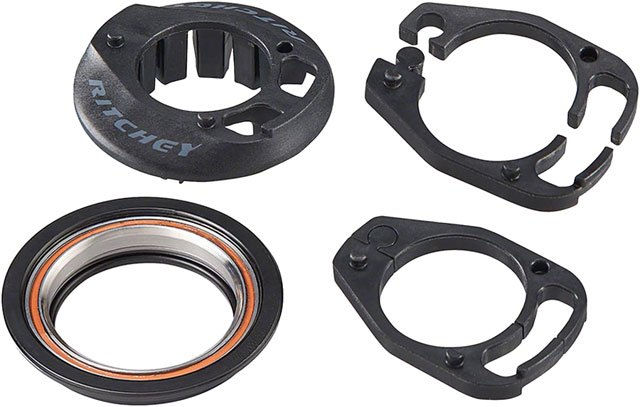

A key component of the new Ritchey WCS Switch System, the WCS Switch Upper Headset upper is designed to specifically work with the Ritchey Switch Stem to route cables, wires and hydraulic lines from the handlebar through to the bicycle frame. Cables are routed from the handlebar into the headset conduit, which sits on the underside of the Switch Stem and then travel through an opening on the front of the WCS Switch headset spacers before passing through two channels on the top of the headset and into the frame. This system allows headset bearings to perform without any interference from cables, wires, or lines passing through the headtube.

  • ✓ The Ritchey Switch System is an innovative integrated system designed to easily conceal internally routed cables, wires, and hydraulic lines from the handlebar into bicycle frames with straight 1.5" head tubes together with tapered 1-1/8" – 1.5" forks. The Switch System consists of three elements: Switch Headset, Headset Spacers and Adapters (Sold Separately)
  • ✓ Requires a bearing insertion depth of 8.7mm for the closest fit, please check with your frame manufacturer for compatibility
  • ✓ 5mm x 2pc interlocking spacers included
  • ✓ Compression cap sold separately
Material Composite
S.H.I.S Upper ZS56
S.H.I.S. Stem Clamp Diameter 28.6 Threadless
Color Black
Bearing Type Sealed Cartridge
Weight 54
Defined Color List Black
Stack Height 23.7
