Ritchey Road Logic Disc Frameset - 700c, Steel, Green, 51cm
MPN: 97352897014 · UPC: 796941974974

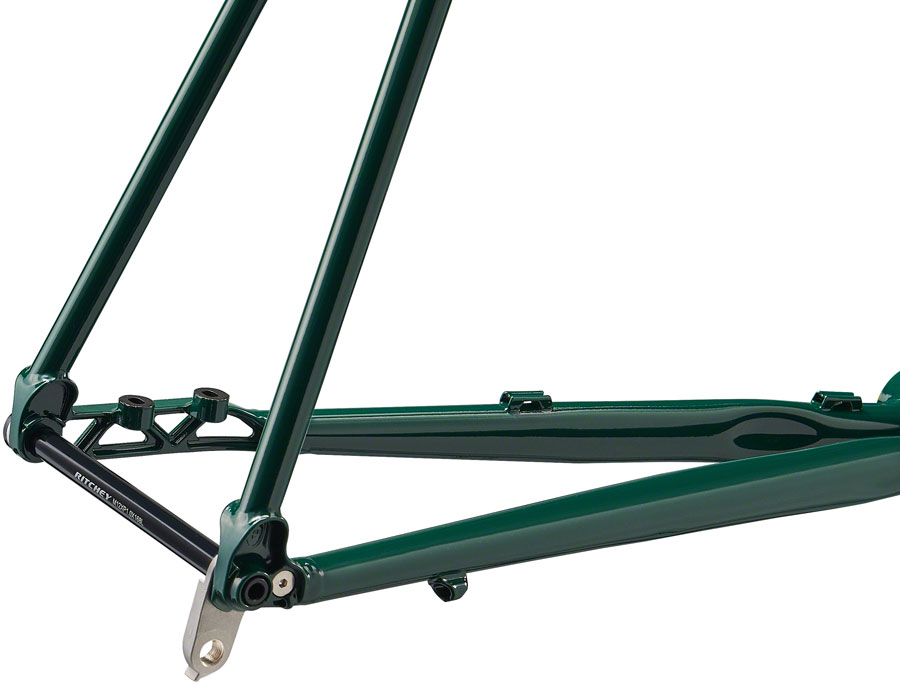

The Ritchey Road Logic Disc frame is built with a heat-treated and triple-butted Ritchey Logic tubeset designed specifically for the Road Logic. It features aggressively short-butted sections optimized for TIG welding that save weight and improve ride quality. The frameset also includes a Ritchey WCS Carbon Road Fork for precise handling and responsiveness. Road Logic Disc frame is now compatibility with Shimano’s newest Di2 semi-wireless 12-speed groupsets. A new drive side dropout design allows for concealed wire routing from the battery in the seat tube, through the bottom bracket area into the chainstay where it makes a stealthy exit to the rear derailleur.
- ✓ Flat-mount brake compatibility
- ✓ Thru-axles in front and rear
- ✓ Stealth wire routing for semi-wireless Di2 groupsets
- ✓ Ritchey WCS Full Carbon Fork
- ✓ 700x30c tire clearance (depending on tire/rim manufacturer)
- ✓ Headset: WCS drop in 1-1/8” (included)
- ✓ Frame Weight: 1.84 kg (55cm w/ thru-axle)
- ✓ Fork Weight: 440g (uncut w/ thru-axle)
| Rear Axle | 12mm Thru x 142mm |
| Brake Type | Disc |
| TT (Effective) | 532 |
| Fork Type | Rigid |
| Fork Material | Carbon |
| Frame Material | Steel |
| Front Axle | 12mm Thru x 100mm |
| Color | Nigiri |
| Mfg Size | 51 |
| Platform | Road Logic |
| Wheel Size | 700c |
| Defined Color | Green |
Bike Size Guide
| Size | Rider Height | Inseam |
|---|---|---|
| XS / 47-49cm | 5'0" – 5'3" | 27" – 29" |
| S / 51-52cm | 5'3" – 5'6" | 29" – 31" |
| M / 54-55cm | 5'6" – 5'9" | 31" – 33" |
| L / 56-58cm | 5'9" – 6'0" | 33" – 35" |
| XL / 59-61cm | 6'0" – 6'3" | 35" – 37" |
