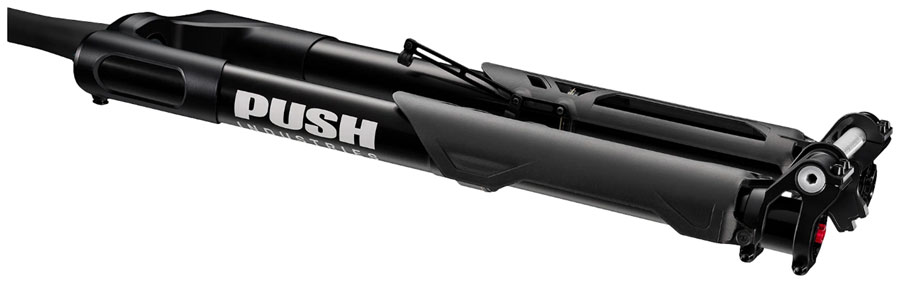

PUSH Industries Nine One V2 Inverted Coil Suspension Fork - 29", 170 mm, 15 x 110mm, 44mm Offset, 45 lb. Spring, Bronze/Graphite Black
MPN: V2-C9.1-170-55-2915-BK · UPC: 840031611192
$2250.00
Low Stock — 1 left (Warehouse)
📦 Ships from Warehouse — 4-9 Business Days
💳
Select Option: PUSH Industries Nine One V2 Inverted Coil Suspension Fork - 29", 170 mm, 15 x 110mm, 44mm Offset, 45 lb. Spring, Bronze/Graphite Black
🏪 Free pickup: 26 Essex St (Rear), Andover MA · 978-270-4895
🔒 Secure Checkout
💳 Visa · MC · Amex · Apple Pay
📦 Free Ship $3,500+
🚚 Local Delivery $20
The Push Industries inverted Nine One V2 fork is designed to deliver true coil-spring performance that's consistent, controlled, and uncompromised. It features a completely submerged sliding bushing system that delivers unmatched sensitivity and control in the roughest conditions by keeping friction low. In addition, the Sub Chamber provides uncompromised performance with instant, on-the-fly midstroke support adjustment and the decoupled Hydraulic Bottom Out System offers control at the end of travel, without giving up comfort everywhere else. The result is a fork that stays plush, controlled, and predictable.
- ✓ Premium inverted, coil‑sprung fork engineered for exceptional sensitivity and traction
- ✓ Submerged Bushing System minimizes friction and maintains smoothness under heavy and high-impact loads that create harshness, breaks traction, and rapidly increases rider fatigue
- ✓ Increased bushing overlap introduces a decreasing leverage effect, maintaining a smooth, consistent feel through the full range of travel and the superior bushing support minimizes friction, providing a smoother and more plush initial travel
- ✓ Sub Chamber switch provides instant mid‑stroke support for steep or rough terrain that provides riders the freedom to tune their ride in real time - No Tools, No Down Time
- ✓ KS's decoupled Hydraulic Bottom Out System adds a dedicated increase in compression damping for the last 70mm of travel, activating only when you need it
- ✓ The decoupled Hydraulic Bottom Out System also allows riders to run a lighter spring and damper settings for a smoother, more compliant ride, while still having the protection to take on
| Steerer Type | Tapered |
| Lockout Switch | Shock Mounted Switch |
| Brake Type | Post Mount 180 |
| Travel (mm) | 170 |
| Offset | 44 |
| Axle to Crown Length | 581 |
| Front Axle | 15mm Thru x 110mm |
| Maximum Tire Width | 66 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Color | Burnt Bronze/Graphite Black |
| Crown Race | 40 |
| Weight | 2800 |
| Wheel Size | 29" |
| Designed for ebike | Yes |
| External Adjustments | Rebound Damping |
| Defined Color | Brown |
| Positive Spring | Coil |
| Stanchion Diameter | 36 |
