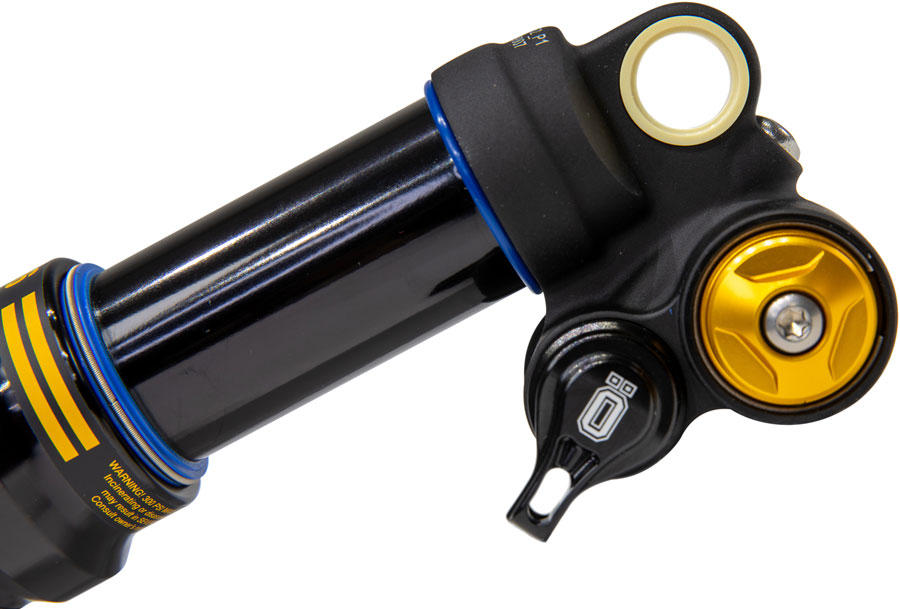

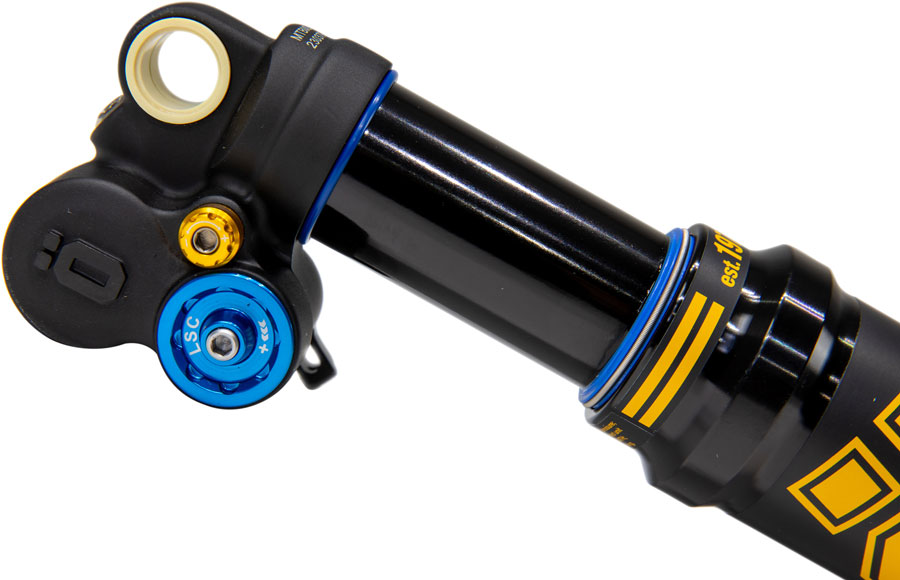

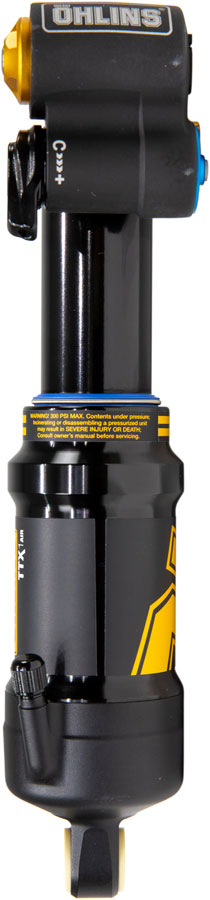

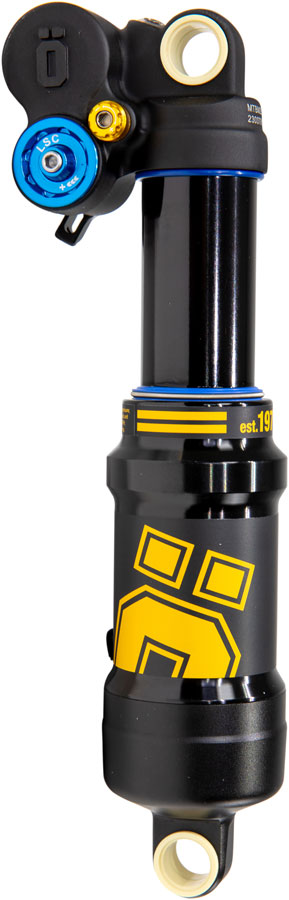

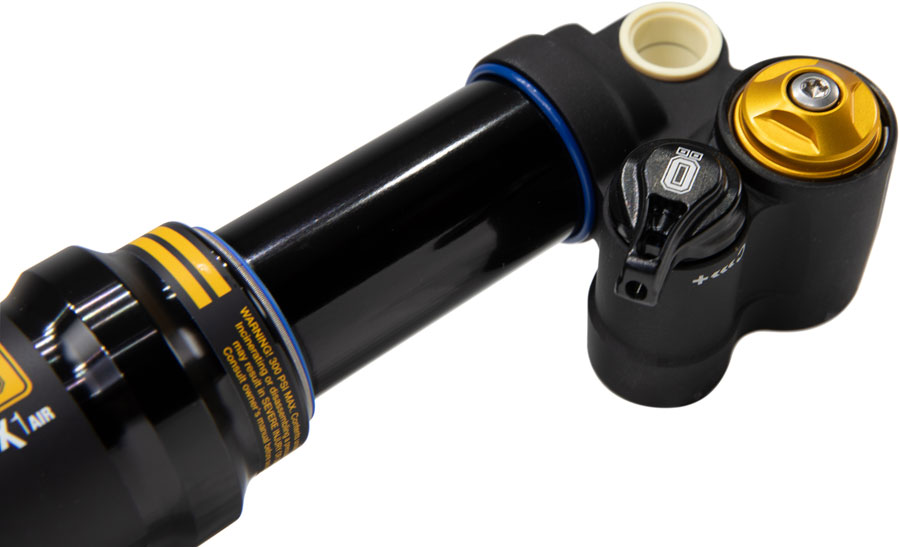

Ohlins TTX1 Air m.2 Rear Shock - Metric, 190mm x 45mm, Adjustable Volume Air Spring, Standard, Black
MPN: MTBM 2550
The Ohlins TTX1 Air m.2 rear shock is designed for trail bikes and eMTBs with more linear suspension systems and builds on their race-proven foundation of damping performance. It offers the same exceptional trail-smoothing capabilities as their double-can TTX2Air m.2 but comes in a slimmer and lighter single-can size. The TTX1Air m.2 is a formidable and versatile choice for riders seeking a lighter or more compact shock without compromising capability and tuning options. With upgrades across key areas, it delivers more precise fine-tuning, unmatched comfort and sensitivity, and stands as the most well-balanced, predictable damper they’ve created to date. Riders now have a broader range of tuning options to perfectly match their bike and riding style—whether pushing limits between the tape or just riding for fun.
- ✓ A high-performing and robust air sprung shock that offers exceptional trail-smoothing capabilities
- ✓ With reduced friction and enhanced sensitivity and comfort, combined with ultimate traction and control, the shock now delivers an even more refined coil-like feel
- ✓ Elevated ride quality is made possible by new seals and the introduction of a bladder system, resulting in better rear-wheel control and improved ground contact
- ✓ Features an improved pedal platform that provides better support when pushing hard and efficiently through challenging climbs
- ✓ Redesigned spacer system makes it easier than ever to adjust the air volume in the positive chamber and stroke adjustment has also been simplified, and there is no longer any need to remove the end-eye for modification (Delivered with the longest stroke, plus the additional parts required to alter the stroke)
- ✓ Redesigned adjustment knob for quicker, more intuitive tuning, allowing riders to fine-tune their setup on the fly
- ✓ Compact end-eye design for better compatibility with a wider range of frame designs
- ✓ Race-proven setting bank to suit any type of riding or linkage design
| Stroke (mm) | 45 |
| Lockout Switch | Shock Mounted Switch |
| Eyelet Diameter (mm) | 12.7 |
| External Adjustments | Rebound Damping |
| Positive Spring | Air |
| Eye to eye length (mm) | 190 |
