Manitou

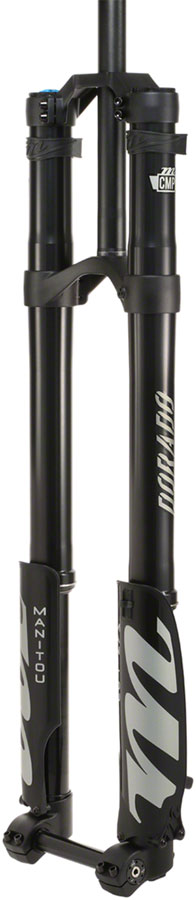

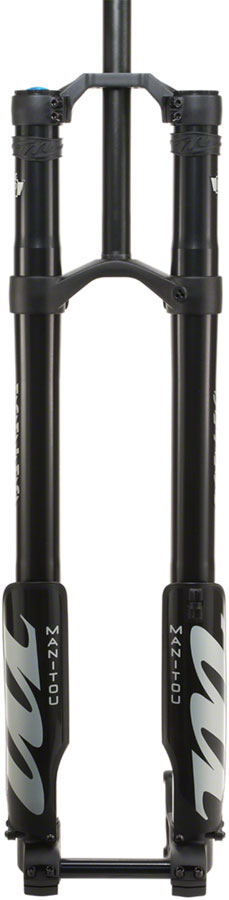

Manitou Dorado Comp Suspension Fork - 29", 203 mm, 20 x 110 mm, 57 mm Offset, Straight Steerer, Black, Gen 2
MPN: 191-37873-A301 · UPC: 844171009321
$1299.99
Out of Stock — Call for Availability
💳
Select Option: Manitou Dorado Comp Suspension Fork - 29", 203 mm, 20 x 110 mm, 57 mm Offset, Straight Steerer, Black, Gen 2
🏪 Free pickup: 26 Essex St (Rear), Andover MA · 978-270-4895
🔒 Secure Checkout
💳 Visa · MC · Amex · Apple Pay
📦 Free Ship $99+
🚚 Local Delivery $20
Once again, the Dorado is available with a coil option. The new Dorado Comp features the same 37mm chassis as the Expert, but with a more set it and forget it vibe. The coil spring provides a smooth consistent feel 100% of the time with 0% of any hassle. On the damping side of things the ABS+ Damper offers a great adjustment range, terrific reliability, and easy serviceability. The Dorado Comp is built for riders who just want to ride and not sweat any of the small stuff.
- ✓ 37mm 6000 Series aluminum stanchions with 6000 Series aluminum upper tubes
- ✓ Aluminum upper and lower crown, and steerer
- ✓ New 2-bolt drop crown features increased head tube length capability with 29" wheels
- ✓ Inverted forks offer an incredibly smooth and consistent feel due to the constant lubrication of the bushings and seals and also provide a major increase in fore-aft stiffness with much longer bushing overlap compared to traditional fork designs
- ✓ TPC adjustment with low speed compression, spring preload, rebound
- ✓ Coil sprung, with up to five spring rates available separately

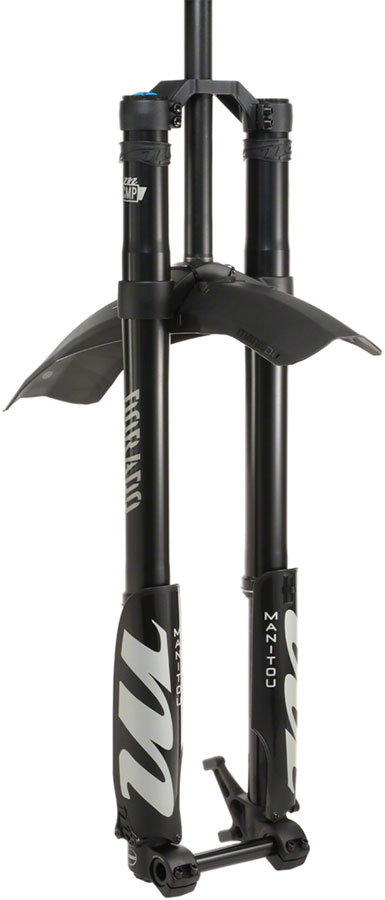

- ✓ New direct mount fender is reversible, allowing for two orientations "moto" for increased front of fork coverage, bike" for increased behind fork coverage
- ✓ 180, 190, 203mm internally adjustable travel
| Steerer Type | Straight |
| Lockout Switch | None |
| Brake Type | Post Mount 203 |
| Negative Spring | Coil |
| Travel (mm) | 203 |
| Offset | 57 |
| Axle to Crown Length | 602 |
| Front Axle | 20mm Thru x 110mm |
| Maximum Tire Width | 67 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Color | Black |
| Crown Race | 30 |
| Weight | 3565 |
| Wheel Size | 29" |
| External Adjustments | Coil Preload |
| Defined Color | Black |
| Positive Spring | Coil |
| Stanchion Diameter | 37 |
| Steerer Tube Length (mm) | 251 |
