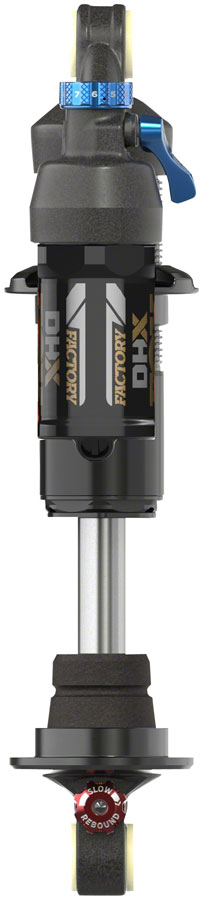

FOX DHX Factory Rear Shock - Metric, 230 x 60 mm, 2-Position Lever, Hard Chromoly Damper Shaft
MPN: 960-01-024 · UPC: 821973492377
$509.15
Out of Stock — Call for Availability
💳
Select Option: FOX DHX Factory Rear Shock - Metric, 230 x 60 mm, 2-Position Lever, Hard Chromoly Damper Shaft
🏪 Free pickup: 26 Essex St (Rear), Andover MA · 978-270-4895
🔒 Secure Checkout
💳 Visa · MC · Amex · Apple Pay
📦 Free Ship $99+
🚚 Local Delivery $20
The answer for riders seeking the ultimate in plush suspension, DHX brings coil-sprung, ground-hugging, trail-smoothing performance in a wide range of configurations to All-Mountain riding. The high-flow main piston assembly provides increased sensitivity, support, and rear tire grip.
- ✓ New chassis and damper
- ✓ High-flow main piston, Numbered Tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
- ✓ Independent firm mode circuit – 2 position adjuster, Optimized reservoir lengths per shock size
- ✓ Hydraulic top out feature, Reduced damper noise, MCU bottom out bumper
- ✓ Single-turn rebound adjuster with a variety of access modes (Tool-free, 3mm hex (direct access), 2mm hex or similar (side access)
- ✓ Spring preload collar with detents and max / min number of clicks and direction arrow
- ✓ Coil spring sold separately
| Stroke (mm) | 60 |
| Lockout Switch | Shock Mounted Switch |
| Metric | Yes |
| Eyelet Diameter (mm) | 12.7 |
| External Adjustments | Rebound Damping |
| Positive Spring | Coil |
| Eye to eye length (mm) | 230 |
| keyword search | FOX MY25 |
