FOX

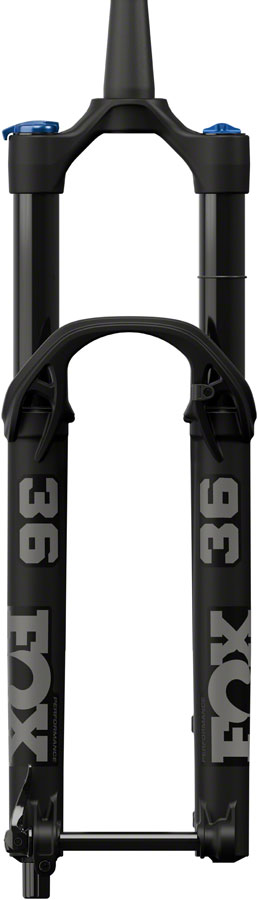

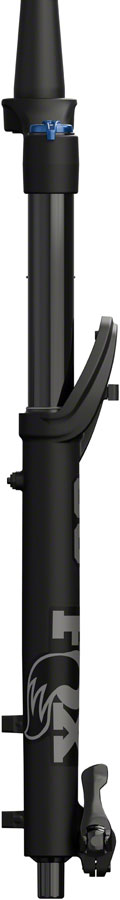

FOX 36 Performance Suspension Fork - 29", 160 mm, 15QR x 110 mm, 44mm Offset, GRIP Damper, 3-Position, 58HT, Matte Black
MPN: 910-21-349 · UPC: 821973504209
$819.00
Low Stock — 2 left (Warehouse)
📦 Ships from Warehouse — 4-9 Business Days
💳
🏪 Free pickup: 26 Essex St (Rear), Andover MA · 978-270-4895
🔒 Secure Checkout
💳 Visa · MC · Amex · Apple Pay
📦 Free Ship $99+
🚚 Local Delivery $20
Packed with features to dominate the descents, the 36 Performance answers the call from aggressive all-mountain riders. This fork features a GRIP 3-position damper, adjustable FLOAT air spring, and rebound adjust.

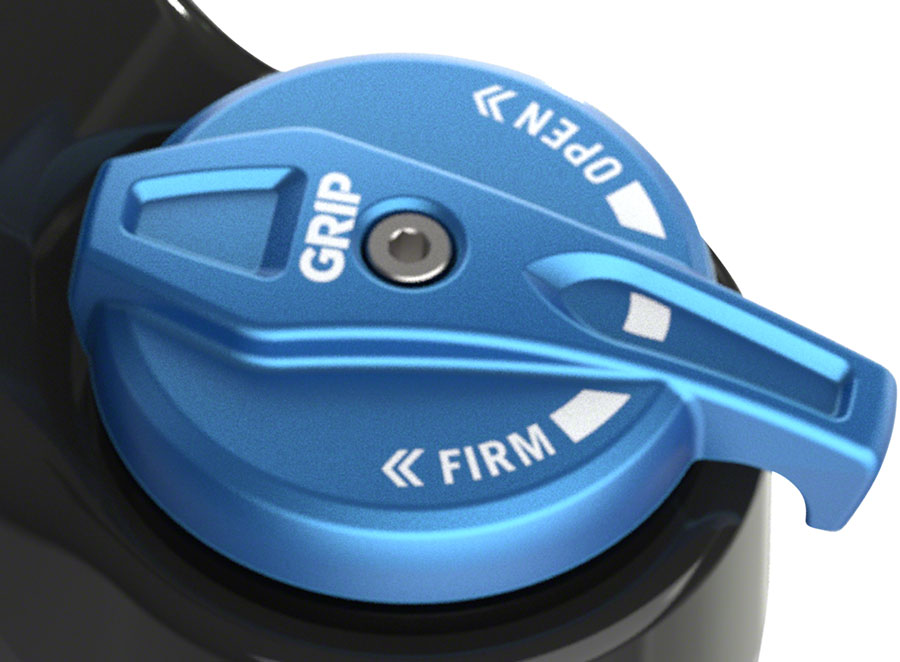

- ✓ GRIP damper features a 3-position lever for easy set up and firm mode for pedaling efficiency
- ✓ Generative design-assisted lower leg arch shape increases torsional stiffness by 20%, while reducing overall material
- ✓ Additional 30mm bushing overlap than the prior model 36, reduces chassis friction, increasing stiffness and boosting performance
- ✓ New compliant FLOAT EVOL air spring design allows for a slight misalignment under load, reducing chassis friction noticeably
- ✓ Lower leg bypass channels were relocated 90° inboard to a lower stress area, reducing dynamic friction under bending forces
- ✓ Double-butted stanchion (on damper side) shaves weight, helping us achieve goal of zero weight increase

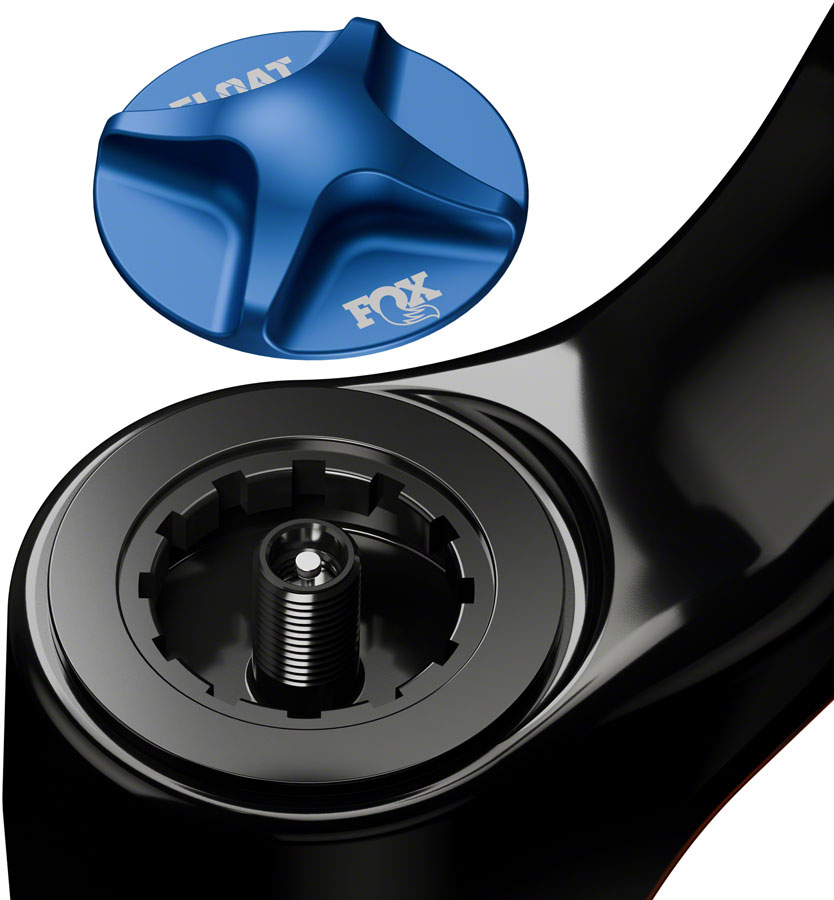

- ✓ New air spring top cap for easier air volume adjustments, removable with cassette tool (Sold separately)
- ✓ Redesigned bleeders are sleeker and easier to operate
- ✓ Kabolt X axle shaves grams while increasing torsional stiffness via a sleeveless, single-sided pinch bolt design
- ✓ Black anodized upper tubes for added durability
| Steerer Type | Tapered |
| Lockout Switch | Crown |
| Brake Type | Post Mount 200 |
| Negative Spring | Air |
| Travel (mm) | 160 |
| Offset | 44 |
| Axle to Crown Length | 576 |
| Front Axle | 15mm Thru x 110mm |
| Maximum Tire Width | 66 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Color | Matte Black |
| Crown Race | 40 |
| Wheel Size | 29" |
| External Adjustments | Rebound Damping |
| Defined Color | Black |
| Positive Spring | Air |
| keyword search | FOX Model Year 26 , FOX MY26 |
| Stanchion Diameter | 36 |
| Steerer Tube Length (mm) | 264 |
