Description

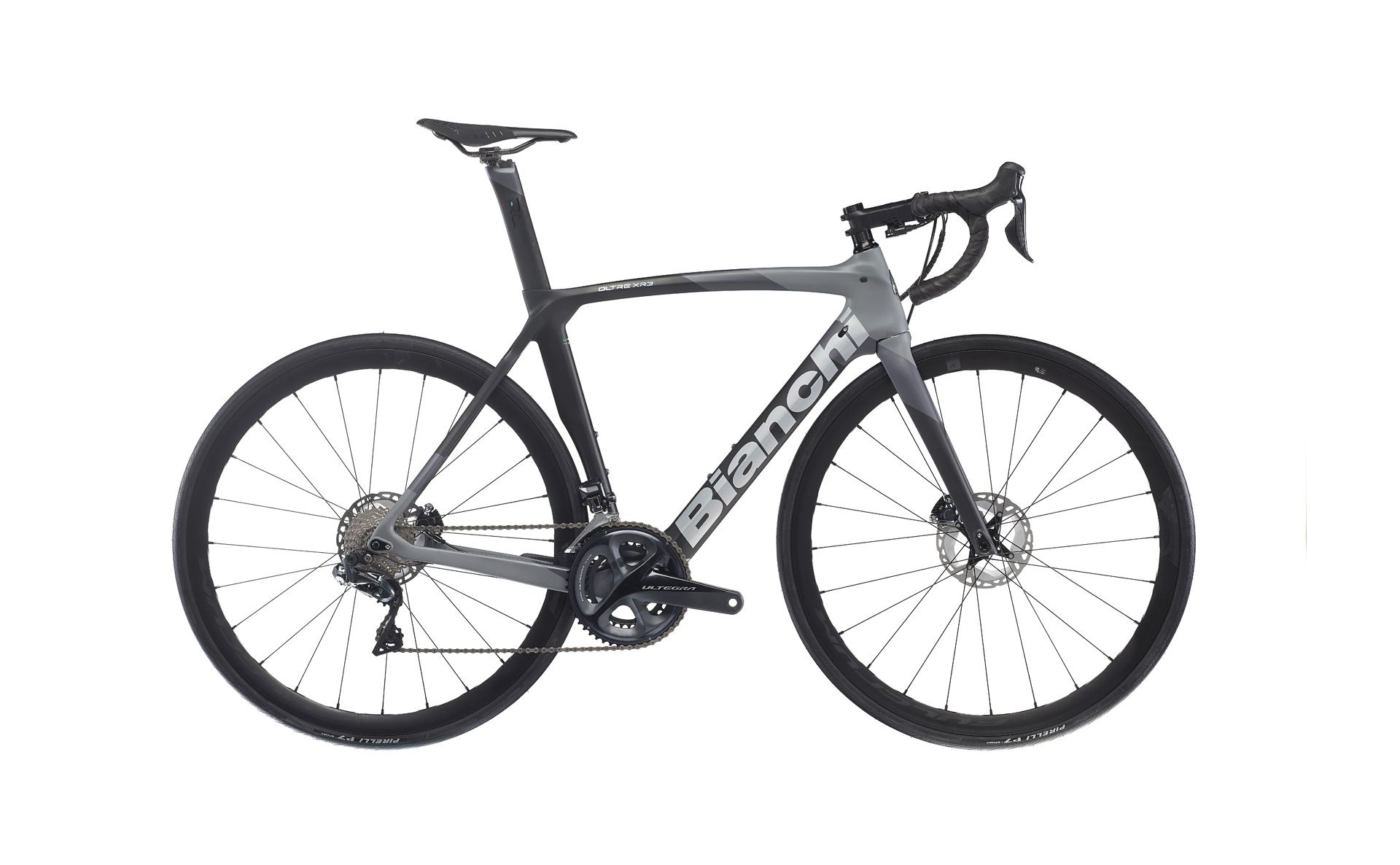

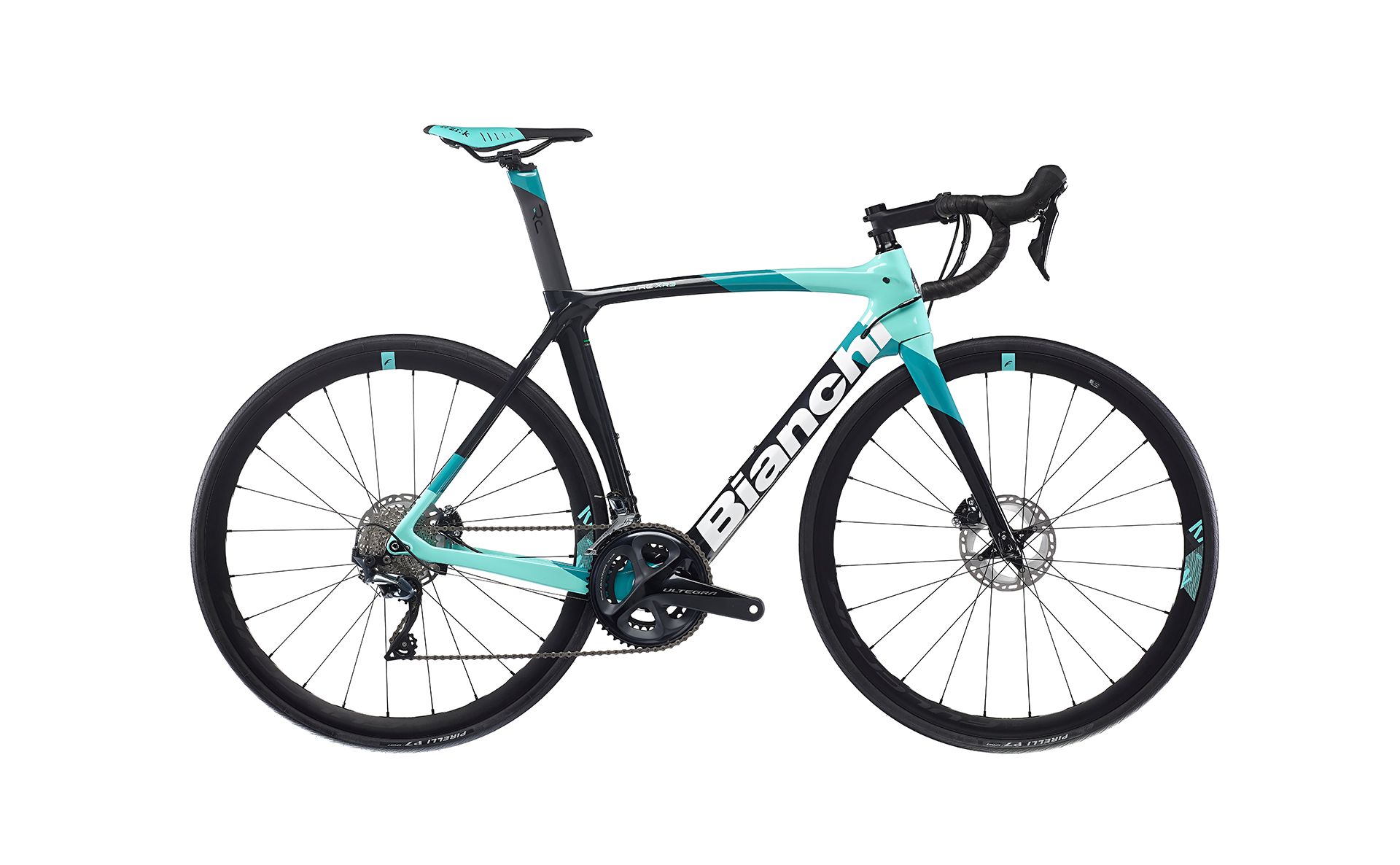

BIANCHI OLTRE XR3 CV DISC CHORUS BIKE SPECIFICATIONS
| Product Name: | Bianchi OLTRE XR3 Disc – Chorus – Carbon Roadbike – 2023 – graphite / CK16 |
| Manufacturer: | Bianchi Bikes |
| Item Code: | BIA626006 |
| activity: | Cycling |
| gender: | men |
| material: | Carbon |
| usage bikesport: | Road Bike |
| hubs: | Centerlock | N3W |
| spokes: | 24 straight pull |
| rims: | Fulcrum 622x19c | tubeless ready | 34mm profile |
| chain: | Campagnolo Chorus | 114 links |
| cassette: | Campagnolo Chorus |
| shifter: | Campagnolo Chorus |
| rear derailleur: | Campagnolo Chorus | 12-speed |
| front derailleur: | Campagnolo Chorus |
| bottom bracket: | Campagnolo Ultra Torque OS-Fit | PF 86.5x41mm |
| chainring ratio: | 50-34 |
| crankset: | Campagnolo Chorus ultra-torque CT Carbon | Crank Length: 170mm-47/54cm, 172.5mm-55/59cm, 175mm- 61cm |
| brakes: | Campagnolo Chorus | Campagnolo AFS 160mm |
| wheels: | Fulcrum Racing 400 Disc Brake | 12x100mm – 12x142mm |
| seat post: | Oltre Full Carbon Aero | Setback: +/- 35mm | Length 250mm-47cm; 300mm-50/53cm; 350mm- 55/59; 380mm-61cm |
| saddle: | Fi’zi:k Antares R7, 274x142mm |
| bar tape: | La Spirale | Black |
| handle bar: | Reparto Corse Aero Compact | alloy 6061 | 31.8mm | reach 74mm | drop 116mm | Size: 400mm-47/53cm, 420mm- 55/59cm, 440mm-61cm |
| stem: | Reparto Corse 3D Forged alloy 6061 | raise +/ – 6° | height 38mm | Oversize, 1.1/8″ | Ext: 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59-61cm |
| fork: | Full Carbon Aero / Countervail | 1 1/8″ – 1.5″ | Flat Mount | 12×100 mm |
| headset: | FSA Orbit C40-ACB | 1 1/8″ – 1.5″ |
| frame: | Oltre XR3 Disc Carbon / Countervail | Flat Mount | 12×142 mm |
| groupset: | Campagnolo |
| gear ratio: | 11-29 |
| number of chainrings: | 1 |
| shifting system: | 12-speed |
| shifting actuation: | Mechanical |
| brake type: | Disc Brake |
| wheel size: | 28″ (29″) (622mm) |
| tires: | Pirelli P7 | 700x28c | 60TPI |
| brake actuation: | Hydraulic |
| Model year: | 2023 |
| Color: | Black, Turquoise |
| manufacturer item code: | YSBK4 |
| cable routing: | internal |
| Manufacturer page: | http://www.bianchi.com |
BIANCHI OLTRE XR3 CV DISC CHORUS BIKE GEOMETRY / SIZE CHART
| Size | Seat Tube (c-c) | Seat Tube (c-t) | Top Tube Length | Head Tube Length | Chain Stay Length | Seat Tube Angle | Head Tube Angle | Stand Over Height | Wheel Size | Stack | Reach |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | – | 426 | 515 | 105 | 410 | 74.5 | 70.5 | 700c | 490 | 376 | |
| 50 | – | 452 | 525 | 110 | 410 | 74.5 | 71.5 | 700c | 499 | 384 | |
| 53 | – | 481 | 535 | 125 | 410 | 74.0 | 72.0 | 700c | 524 | 385 | |
| 55 | – | 500 | 550 | 140 | 410 | 73.5 | 72.5 | 700c | 540 | 389 | |
| 57 | – | 520 | 560 | 155 | 410 | 73.5 | 73.0 | 700c | 556 | 395 | |
| 59 | – | 540 | 575 | 175 | 412 | 73.0 | 73.0 | 700c | 575 | 398 | |
| 61 | – | 560 | 585 | 195 | 413 | 72.5 | 73.0 | 700c | 595 | 398 |
