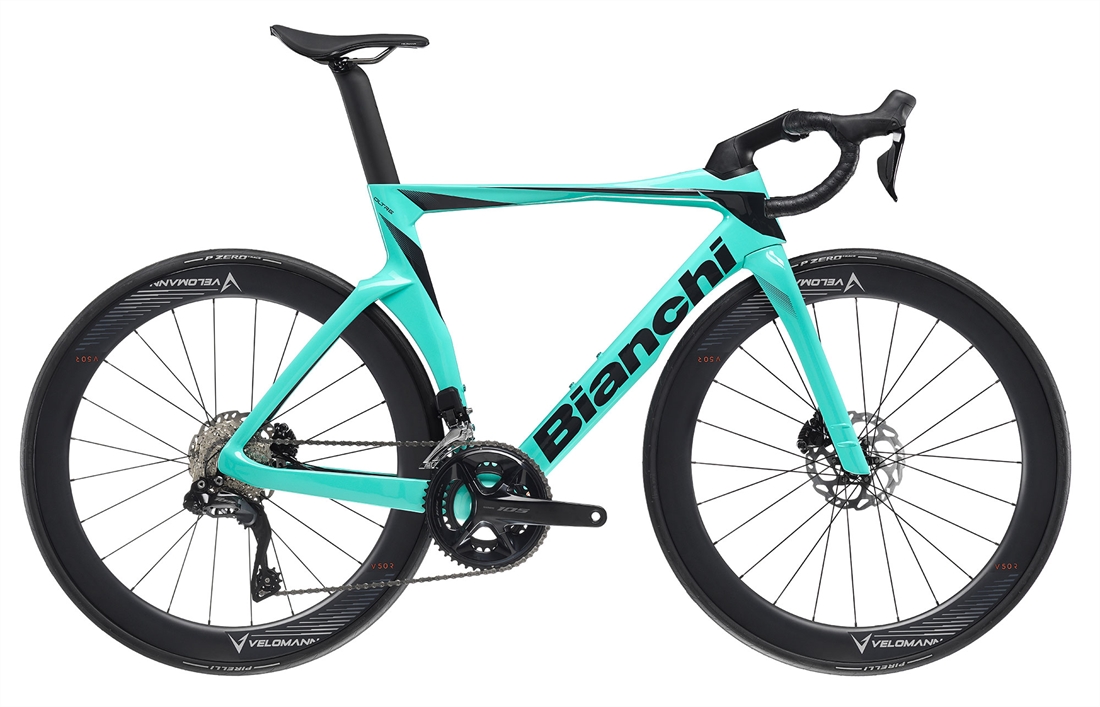

BIANCHI OLTRE 105 DI2 7100 BIKE SPECIFICATIONS
- Cassette Shimano 105 7100 12-speed 11-34
- Chain Shimano 105 12-speed
- Bar Tape Black Soft Microfiber
- Pedals Not Included
- Tires Pirelli P7 700×28
- Wheel – Front Velomann Carbon 55mm profile
- Wheel – Rear Velomann Carbon 55mm profile
- Rotors Shimano Centerlock 160mm
- Frame Material Monocoque Carbon, 12x142mm
- Fork Full Carbon Aero, 12x100mm
- Headset FSA ACB 1.5″ 51.8x40x8
- Seatpost Velomann Oltre Full Carbon Aero Special Dimension, 20mm Offset
- Front Derailleur Shimano 105 Di2 7150
- Rear Derailleur Shimano 105 Di2 7150
- Crankset Shimano 105 7100 50/34
- Bottom Bracket Shimano SM-BB72-41B
- Brake Calipers Shimano 105 7170 Hydraulic Disc
- Shifters / Levers Shimano 105 7170 Di2 for Hydraulic Disc
- Stem Velomann Aero, Alloy
- Handlebar Velomann Aero Compact, Alloy
- Saddle Velomann Mitora
BIANCHI OLTRE 105 DI2 7100 BIKE GEOMETRY / SIZE CHART
| Size | Seat Tube (c-c) | Seat Tube (c-t) | Top Tube Length | Head Tube Length | Chain Stay Length | Seat Tube Angle | Head Tube Angle | Stand Over Height | Wheel Size | Stack | Reach |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | – | 450 | 515 | 83 | 410 | 74.5 | 70.5 | – | 700c | 470 | 385 |
| 50 | – | 480 | 525 | 88 | 410 | 74.0 | 71.5 | – | 700c | 478 | 392 |
| 53 | – | 510 | 536 | 103 | 410 | 73.5 | 72.0 | – | 700c | 504 | 393 |
| 55 | – | 530 | 550 | 118 | 410 | 73.5 | 72.5 | – | 700c | 520 | 397 |
| 57 | – | 550 | 560 | 133 | 412 | 73.0 | 73.0 | – | 700c | 536 | 402 |
| 59 | – | 570 | 575 | 153 | 412 | 73.5 | 73.0 | – | 700c | 555 | 406 |
